Description

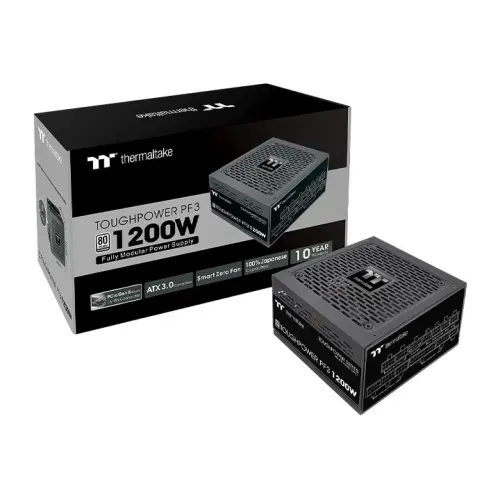

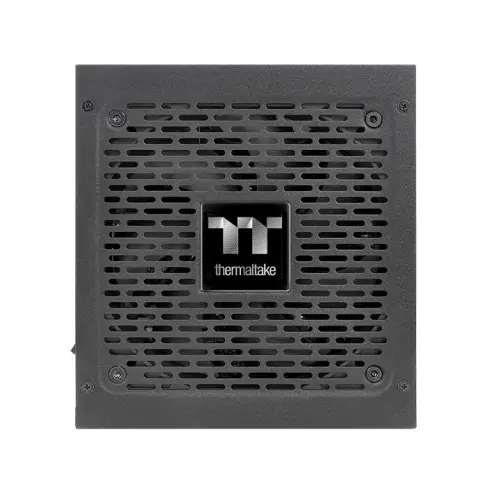

Thermaltake Toughpower PF3 1200W Platinum – TT Premium Edition
Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.
Specifications
| P/N | PS-TPD-1200FNFAPx-3 | |
|---|---|---|
| watts | 1200W | |
| Model | TPD-1200AH2FKP | |
| Max. Output Capacity | 1200W | |
| Color | Black | |
| Dimension ( W / H / D ) | 140mm(D)x86mm(H)x150mm(W) | |
| PFC (Power Factor Correction) | Active PFC | |
| Power Good Signal | 100-250 msec | |
| Hold Up Time | > 17msec | |
| Input Current | 15A | |
| Input Frequency Range | 50 – 60Hz | |
| Input Voltage | 100 – 240Vac | |
| OPERATING TEMPERATURE | 0°C to + 40°C | |
| Operating Humidity | 5% to 85%,non-condensing | |
| Storage Temperature | -40°C to + 70°C | |
| Storage Humidity | 5% to 95%, non-condensing | |
| COOLING SYSTEM | 12cm FDB Fan | |
| Efficiency | Meet 80 PLUS® Platinum at 115Vac input. | |
| MTBF | 100,000 hrs minimum | |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI | |
| PCI-E 6+2pin | 5 | |
| PCIe 12+4pin | 1 | |
| Warranty | 10Years | |
| Note** |
|
