Description

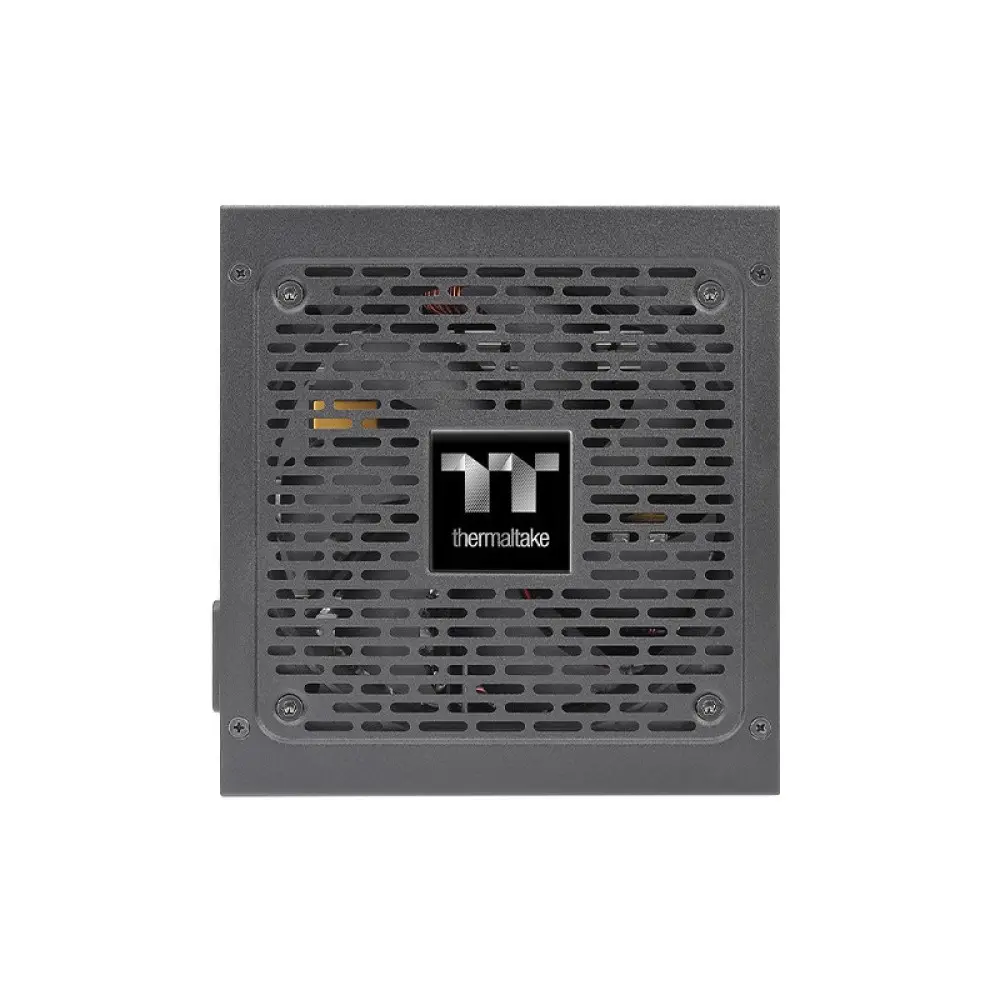

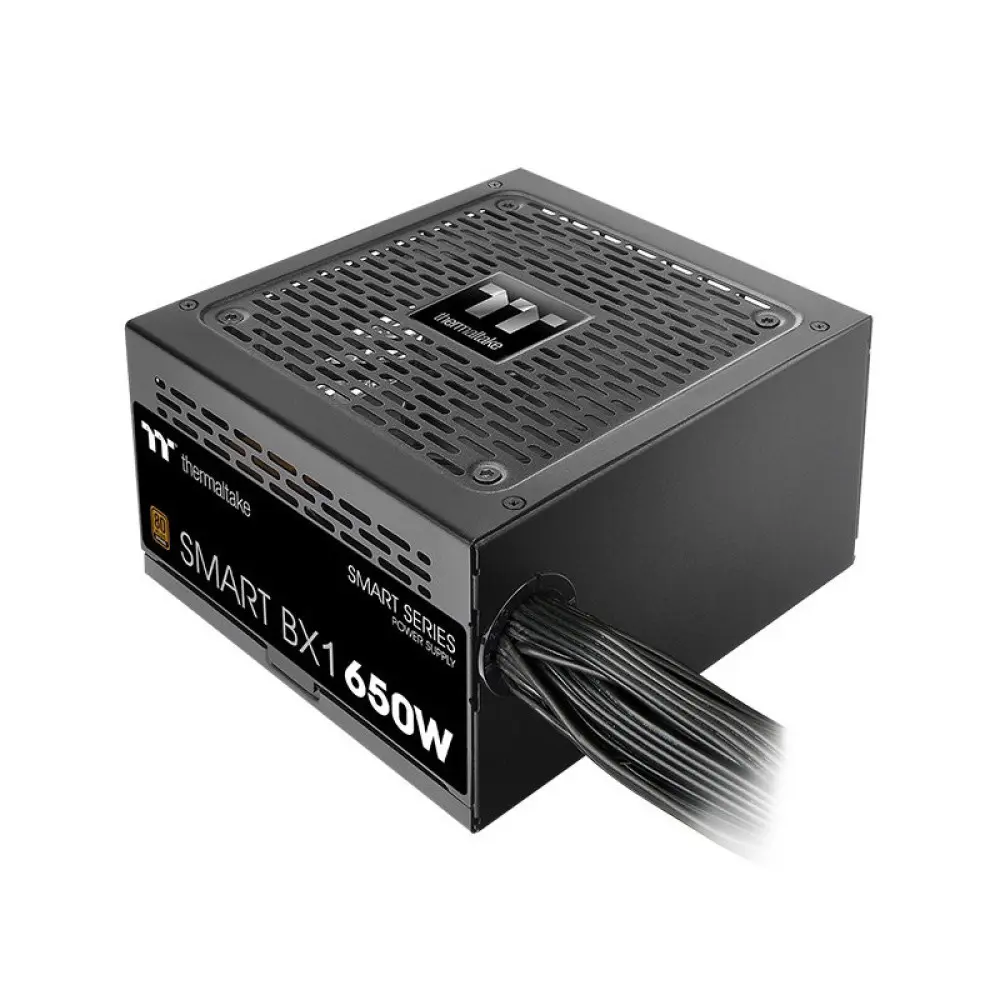

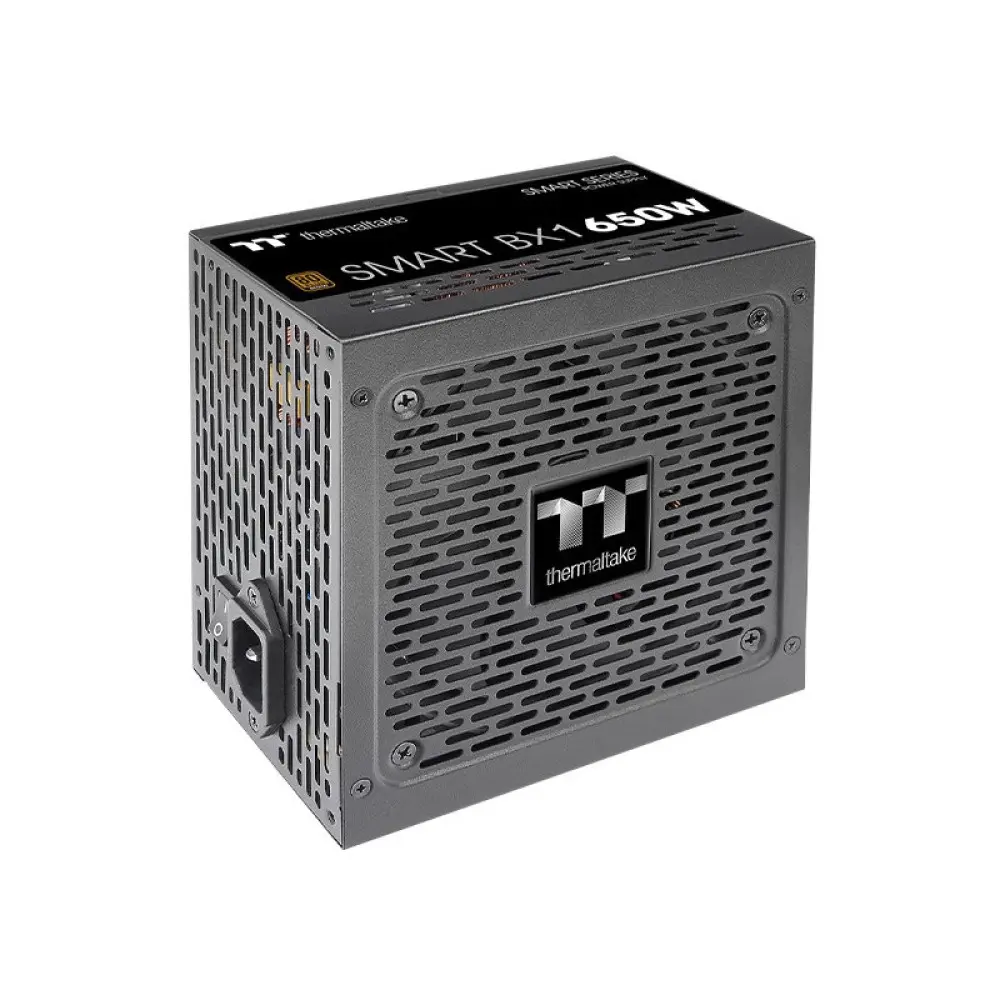

Thermaltake Smart BX1 650W 80 Plus Bronze Power Supply (DC to DC Version)
80 PLUS Bronze certified non-modular PSU with 120mm Hydraulic Bearing fan.
| Specification | |
| Watts | 650W |
| Model | SPD-650AH2NXB |
| Dimension (W/H/D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 12A Max. |
| Input Frequency Range | 50Hz – 60Hz |
| Input Voltage | 100-240Vac |
| Operating Temperature | 5°C to + 40°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm Hydraulic Bearing Fan |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/LVD/FCC/ICES/TUV/CB/cTUVus/BSMI |
| PCI-E 6+2pin | 2 |
| Protection | OCP/OVP/OPP/OTP/SCP/UVP |
| Warranty | 5 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
