Description

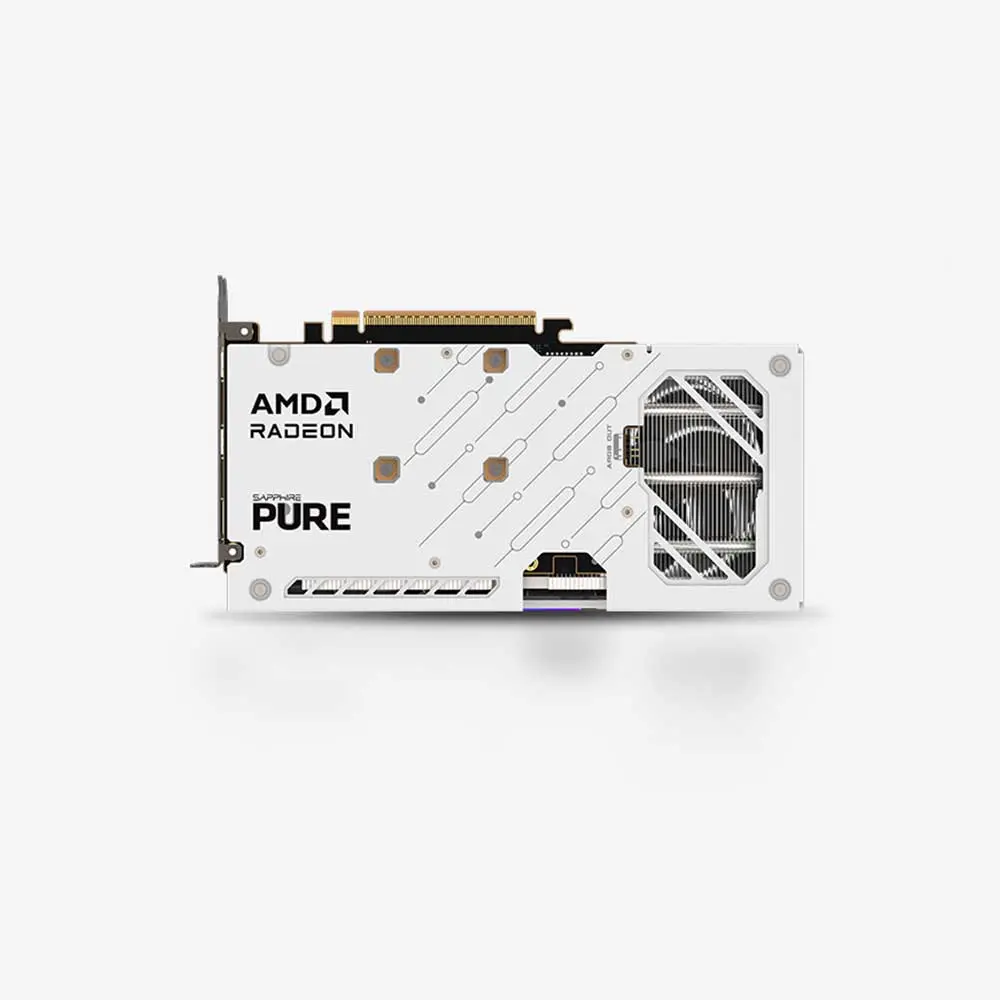

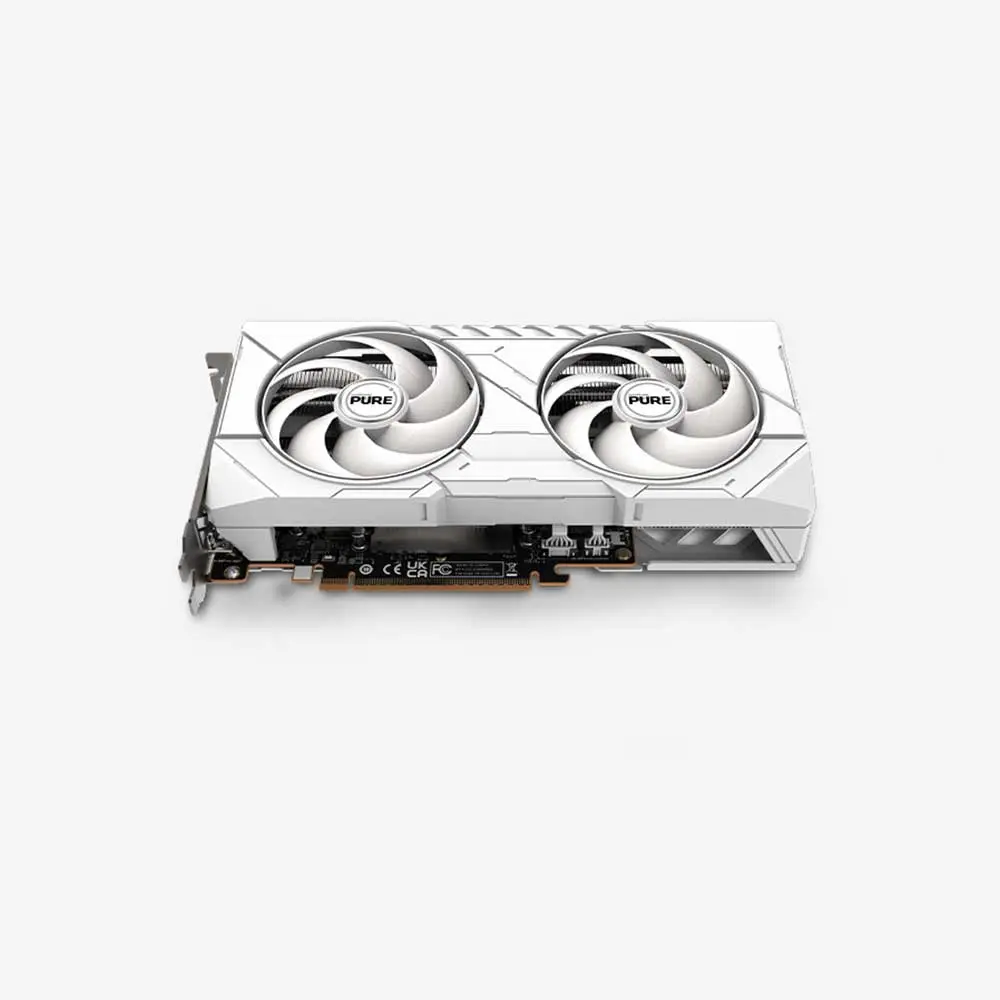

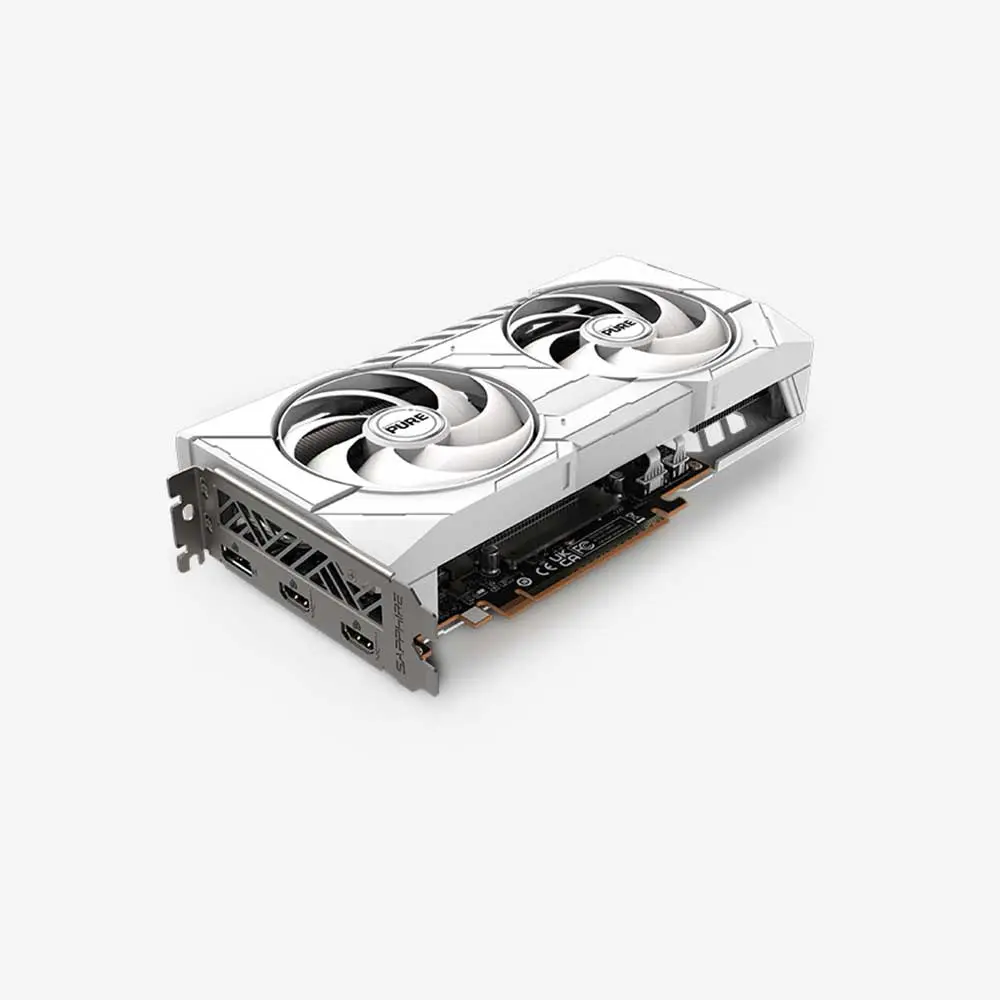

Sapphire Pure Radeon RX 9060 XT 16GB GDDR6 Graphics Card
- GPU: Boost Clock: Up to 3290 MHz
- GPU: Game Clock: Up to 2700 MHz
- Memory:Â Â 16GB/128 bit DDR6. 20 Gbps Effective
- Stream Processors:2048
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 32
| GPU | AMD Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock |
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32Mb |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size / Bus | 16GB/128 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features |
|
| Accessories Bundled |
|
| AMD Features |
|
| Cooler Type |
|
| Form Factor | 2.3 slot, ATX Dimension: 240(L)X 124(W)X 46.1 (H)mm |
| Power Consumption | 170W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement |
|
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
