Description

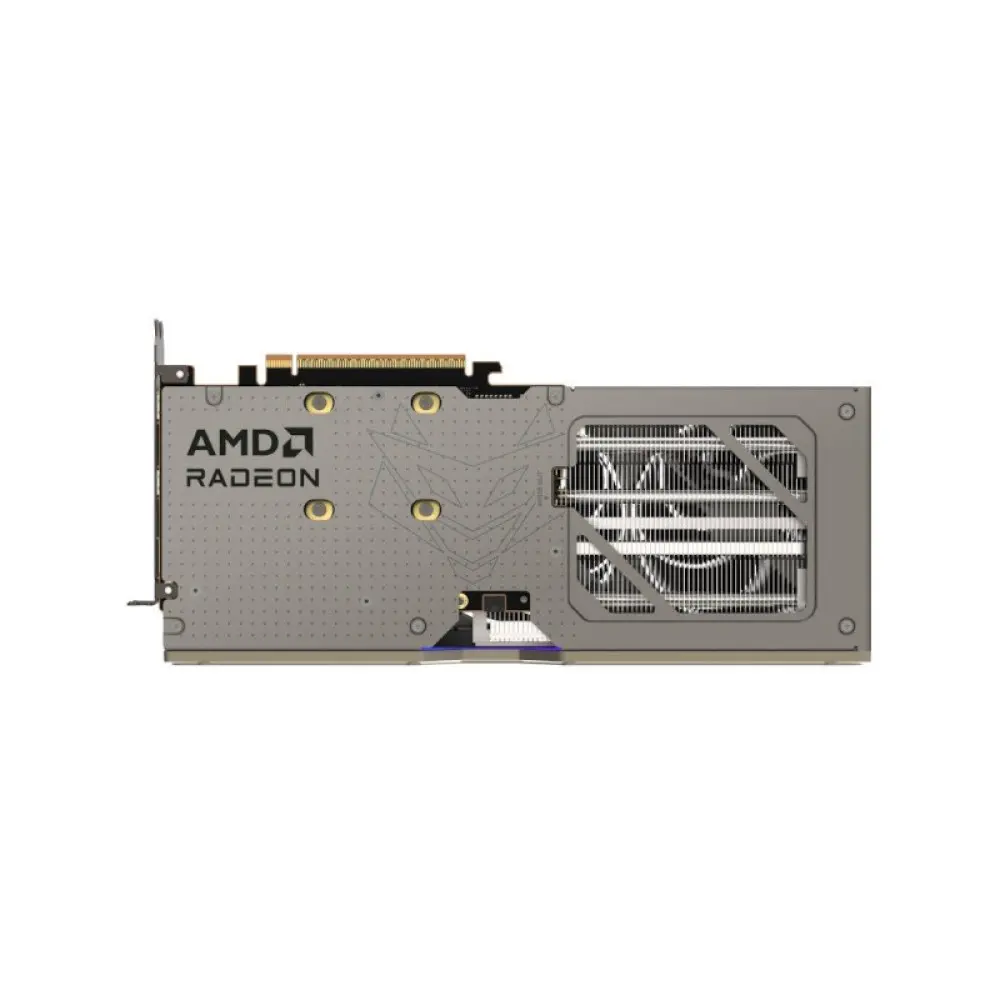

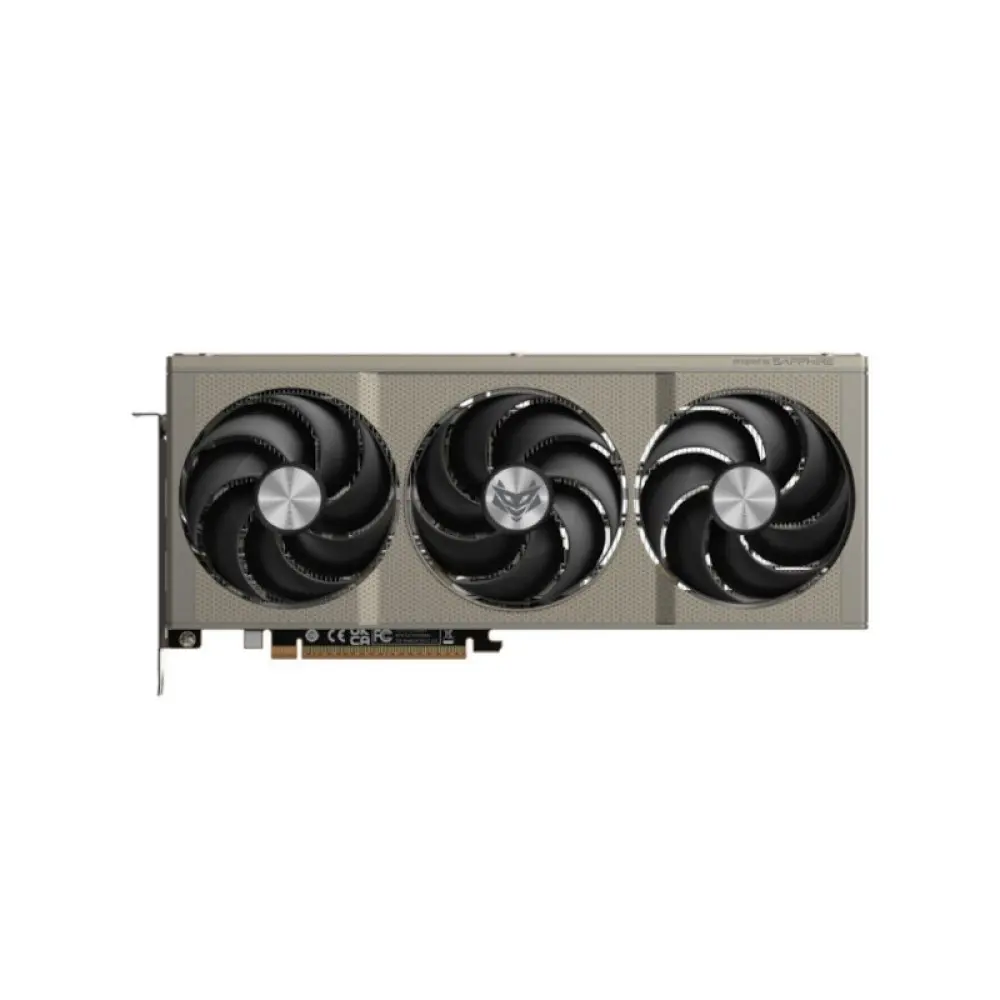

Sapphire Nitro+ AMD Radeon RX 9060 XT 16GB GDDR6 Graphics Card
- GPU: Boost Clock: Up to 3320 MHz
- GPU: Game Clock: Up to 2780 MHz
- Memory: 16GB/128 bit DDR6. 20 Gbps Effective
- Stream Processors: 2048
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 32
| Specification | |
| GPU | AMD Radeon RX 9060 XT Graphics Card
AMD RDNA 4 Architecture |
| Engine Clock | Boost Clock: Up to 3320 MHz
Game Clock: Up to 2780MHz |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size/Bus | 16GB/128 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Resolution | HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI®
1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB Light Bar Fan Quick Connect Two-Ball Bearing Fans Premium 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! Fan Check TriXX Boost External RGB LED MB Synchronization |
| Accessories Bundled | L-Shape Support Bracket
3pin 5V ARGB Cable |
| AMD Features | AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type | Tri-X Cooling
AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 2.7 slot, ATX
Dimension: 300(L)X 131(W)X 55(H)mm |
| Power Consumption | 182W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 450 Watt Power Supply
1 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. Images use for Representation Purpose Only. |
