Description
NZXT C850 850 Watt Gold ATX 3.1 Power Supply White
Designed for maximum performance with minimal noise, NZXT C850 850 Watt Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2×6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 50 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.

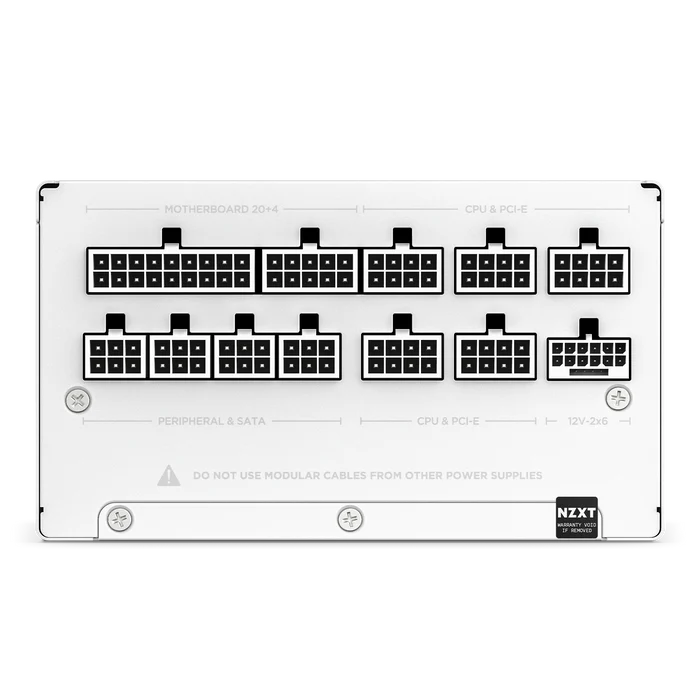

| Output Connectors | |
| 24-pin ATX Power Cable | 1 |
| 4+4-pin CPU Power Cable | 1 |
| 8-pin CPU Power Cable | 1 |
| 6+2-pin PCIe Power Cable | 3 |
| 16-pin (12+4) 12V-2×6 PCIe Cable | 1 |
| SATA Cable | 12 |
| Peripherals Cable | 4 |
| Cable Specs | |
| 24-pin ATX Power Cable | 600 mm with nylon sleeving |
| 4+4-pin CPU Power Cable | 700 mm with nylon sleeving |
| 8-pin CPU Power Cable | 700 mm with nylon sleeving |
| 6+2-pin PCIe Power Cable | 650 mm with nylon sleeving |
| 16-pin (12+4) 12V-2×6 PCIe Cable | 650 mm with nylon sleeving |
| SATA Cable | 500 + 150 mm |
| Peripherals Cable | 500 + 150 mm |
| AC Input Rating | |
| 100 – 240Vac | 10A–5A 50Hz–60Hz |
| 200 – 240Vac | – |
| DC Output Rating | |
| 3.3V / +5V | 22A (120W) |
| 12V | 70.83A (850W) |
| 5Vsb | 3A (15W) |
| Total | 850W |
| Energy Efficiency | |
| Rating | 80 Plus Gold |
| 10% loading | 85.8% @ 115Vac |
| 20% loading | 89.5% @ 115Vac |
| 50% loading | 91.7% @ 115Vac |
| 100% loading | 89.2% @ 115Vac |
| Electrical Features | |
| PF Correction | Active @ 0.99 |
| Protecions | OVP / UVP / SCP / OTP / OPP / OCP |
| Fan Specs | |
| Dimensions | 135 x 135 x 25 mm |
| Speed | 2300 ± 10% RPM |
| Airflow | 93.02 CFM (Min.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Operation | |
| MTBF | 100,000 hours |
| Temperaure | 0 – 50 °C |
| Dimensions | |
| Width | 150 mm |
| Height | 86 mm |
| Depth | 160 mm |
| General | |
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v3.1 / EPS12V v2.92 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
