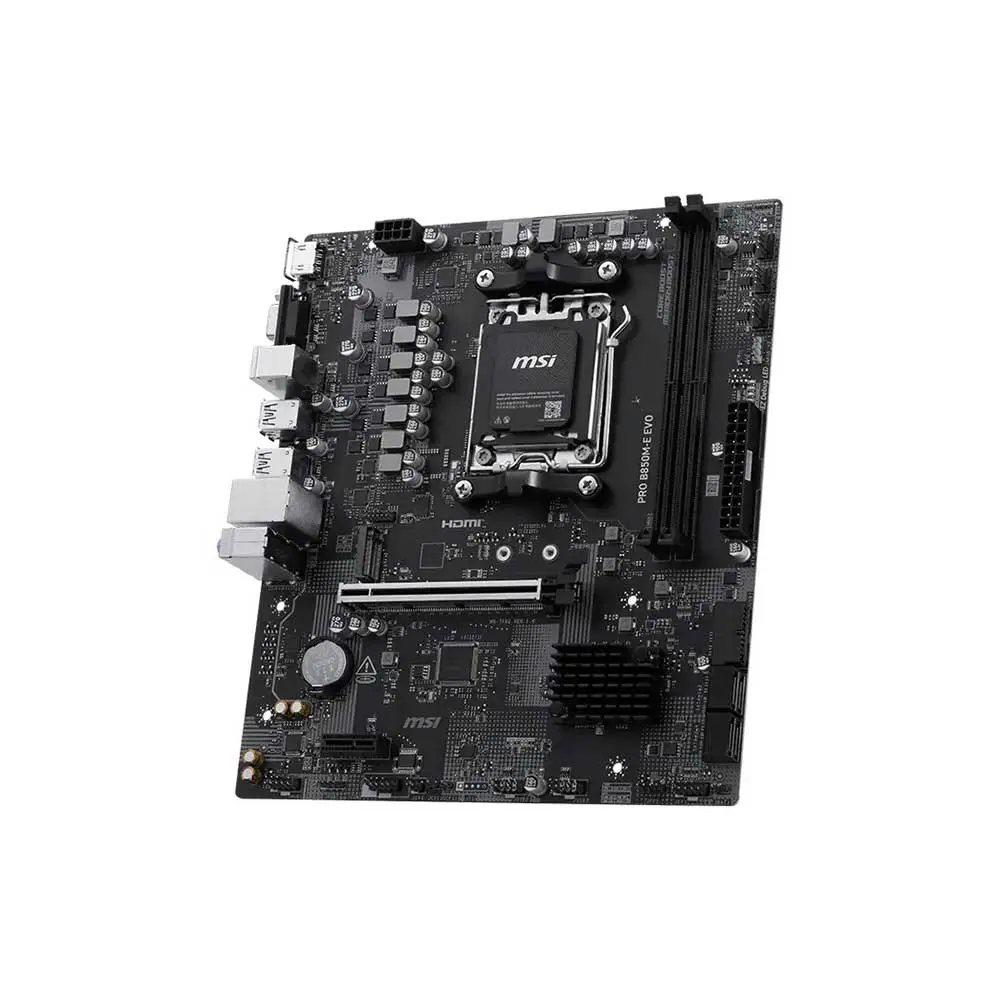

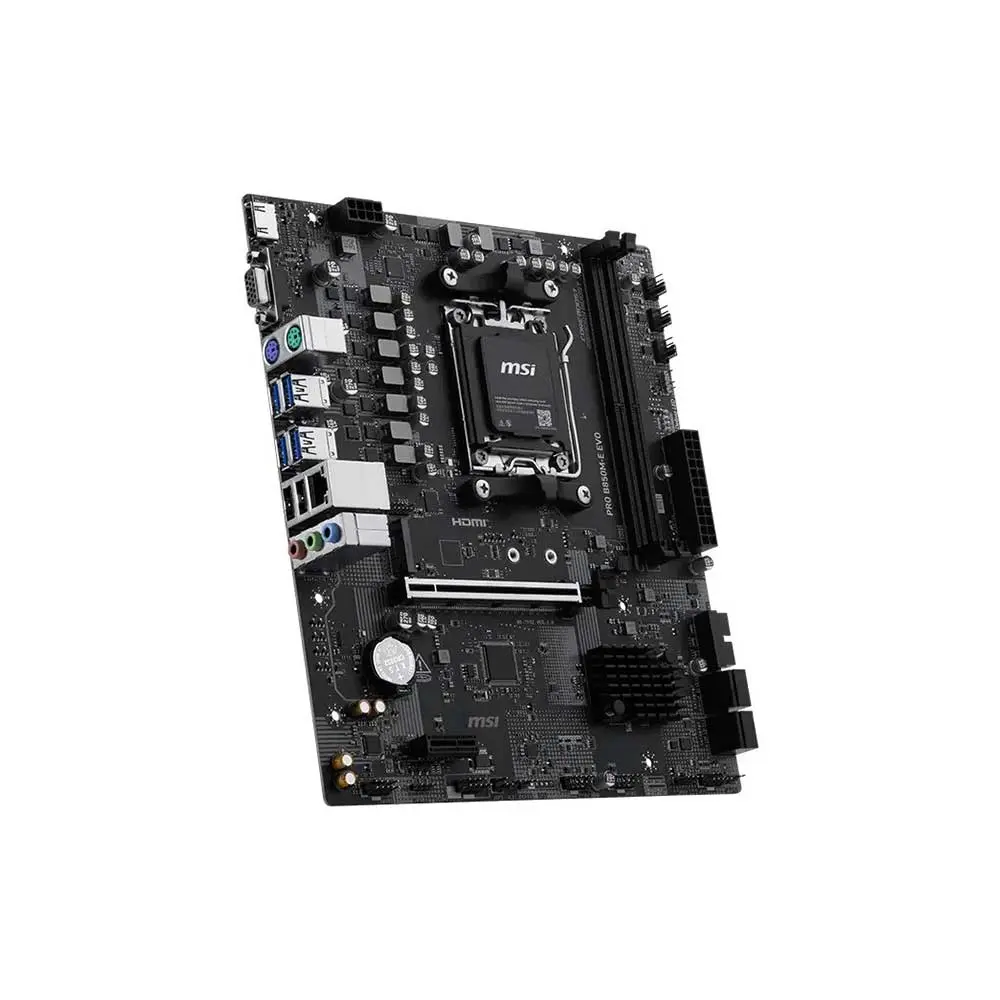

MSI Pro B850M-E EVO AM5 Micro ATX Motherboard
MSI PRO B850M-E EVO is engineered with many exclusive features of MSI, PCIe 5.0 slot, Gen 5 M.2, DDR5 meomry, 2.5G LAN, EZ PCIe Clip II, and 64MB BIOS ROM, ready for the AMD Ryzen™ 9000 series processors.
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 port with HDR, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 4x SATA 6GM2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| Raid | Supports RAID 0, RAID 1 , and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® 8125 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED Feature | 4x EZ Debug LED |
| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | mATX 243.84mmx215mm |
| Warranty | 2 Years |
| Note** | **Prices, Specificiations & Features are subject to change without notice |
