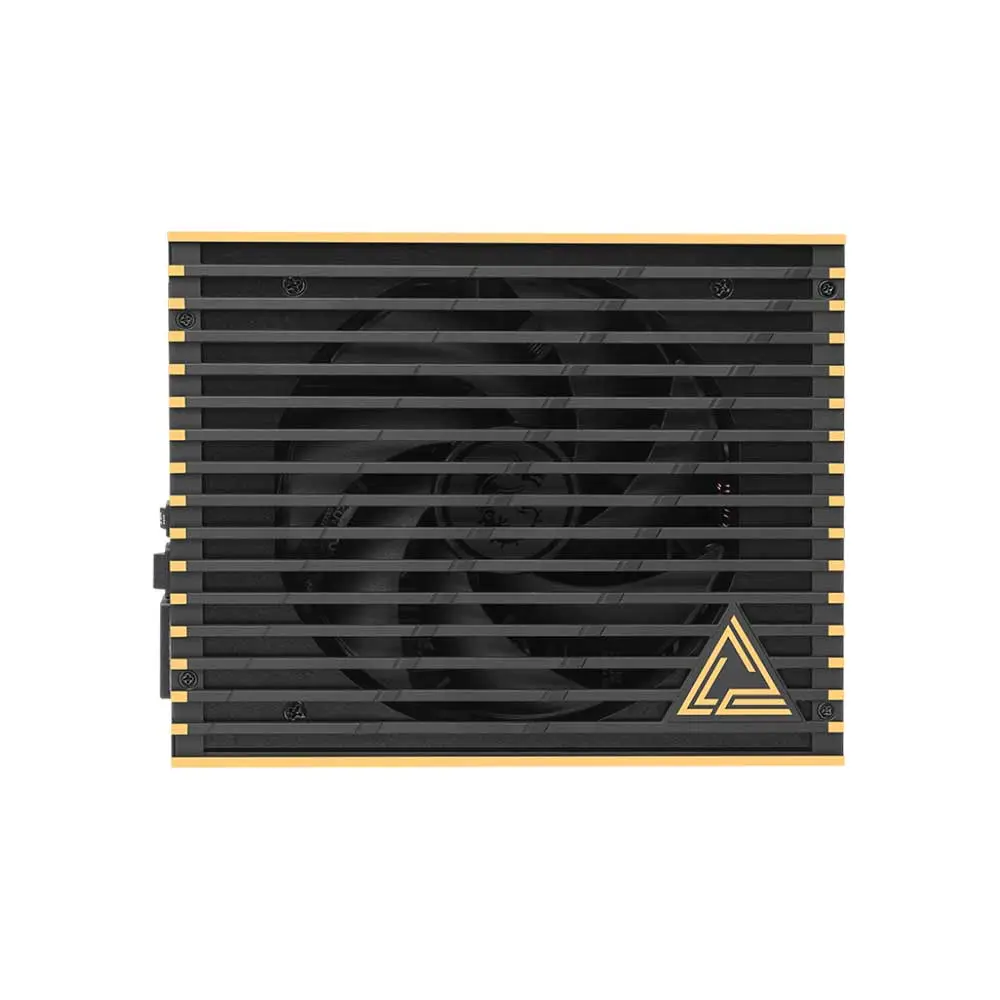

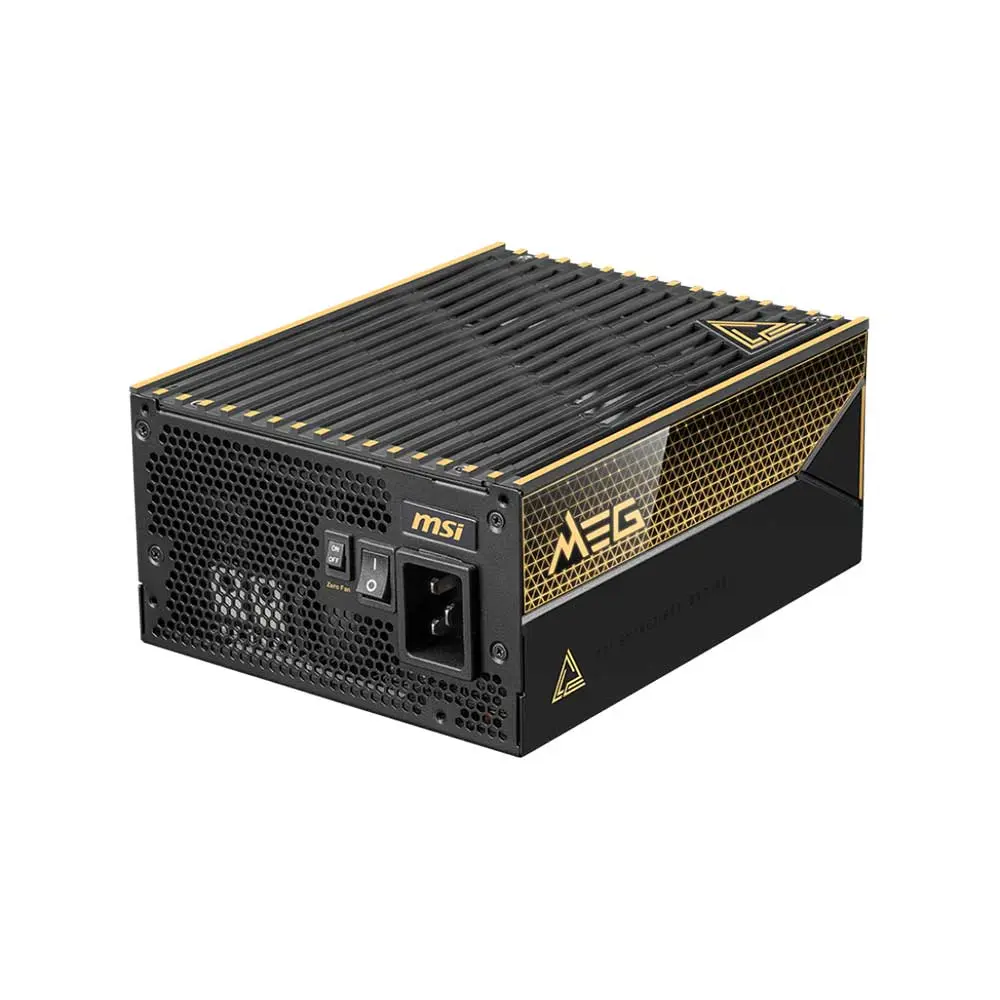

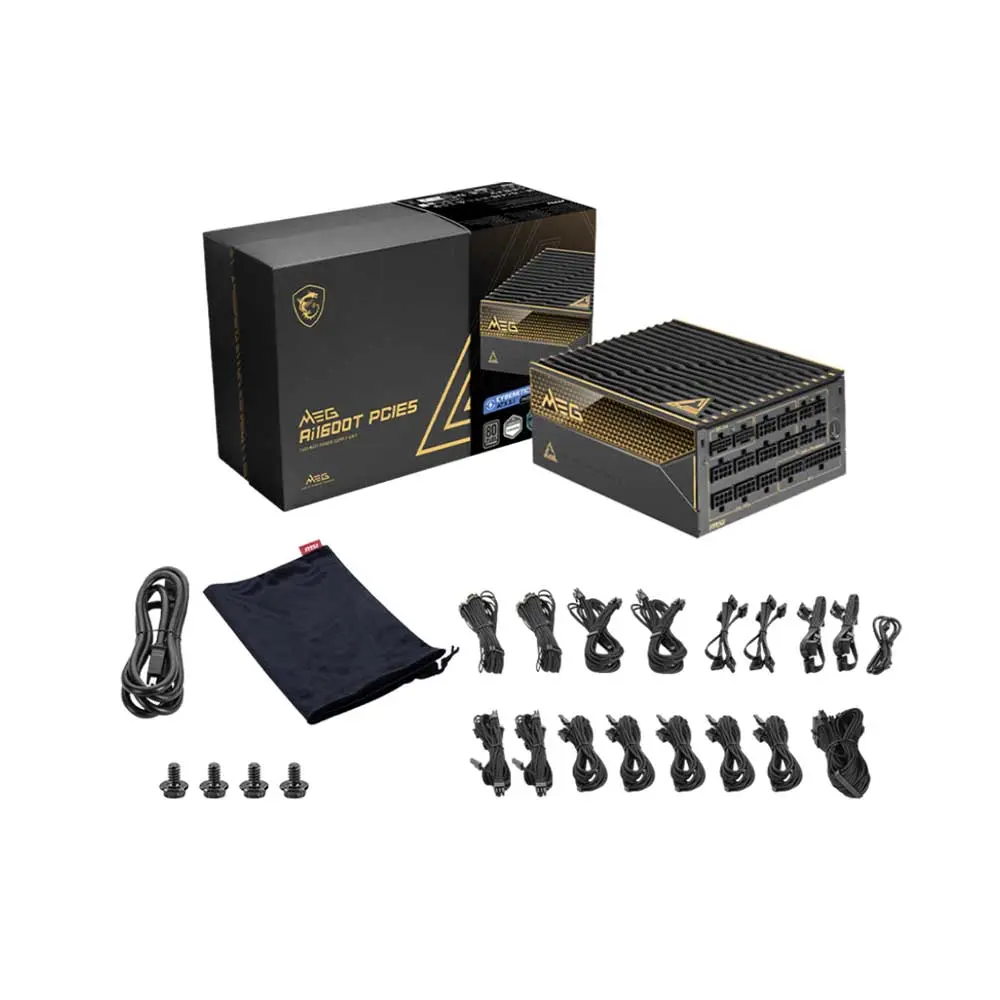

Msi Meg Ai1600T PCIE5 ATX 3.1 FULLY MODULAR 1600 Watt Power Supply
MSI’s flagship MEG AI1600T PCIE5 1600 Watt series Power Supply exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
- Supports Nvidia® GeForce RTXTM 50 Series graphics cards
- Dual-native 12V-2×6 Connectors
- Server-grade materials, SiC interleaved PFC MOSFET
- Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP)
- PCIe 5.1 and ATX 3.1 Ready
- Dual-color 12V-2×6 cables
- 100% all Japanese 105oC capacitor
- Full digital design with control MCU
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
| Efficiency Rating | 80 PLUS Titanium (up to 94%) |
| Modular | Yes (Fully Modular) |
| Fan Size | 135mm |
| Fan Bearing | Double Ball Bearing |
| Dimensions (WxDxH) | 190 x 150 x 86 mm |
| PFC Type | Interleaved PFC |
| Input Voltage Range | 100-240 |
| Power Watt | 1600W |
| Power Excursion | 3840W (*up to 240% of the PSU’s rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |

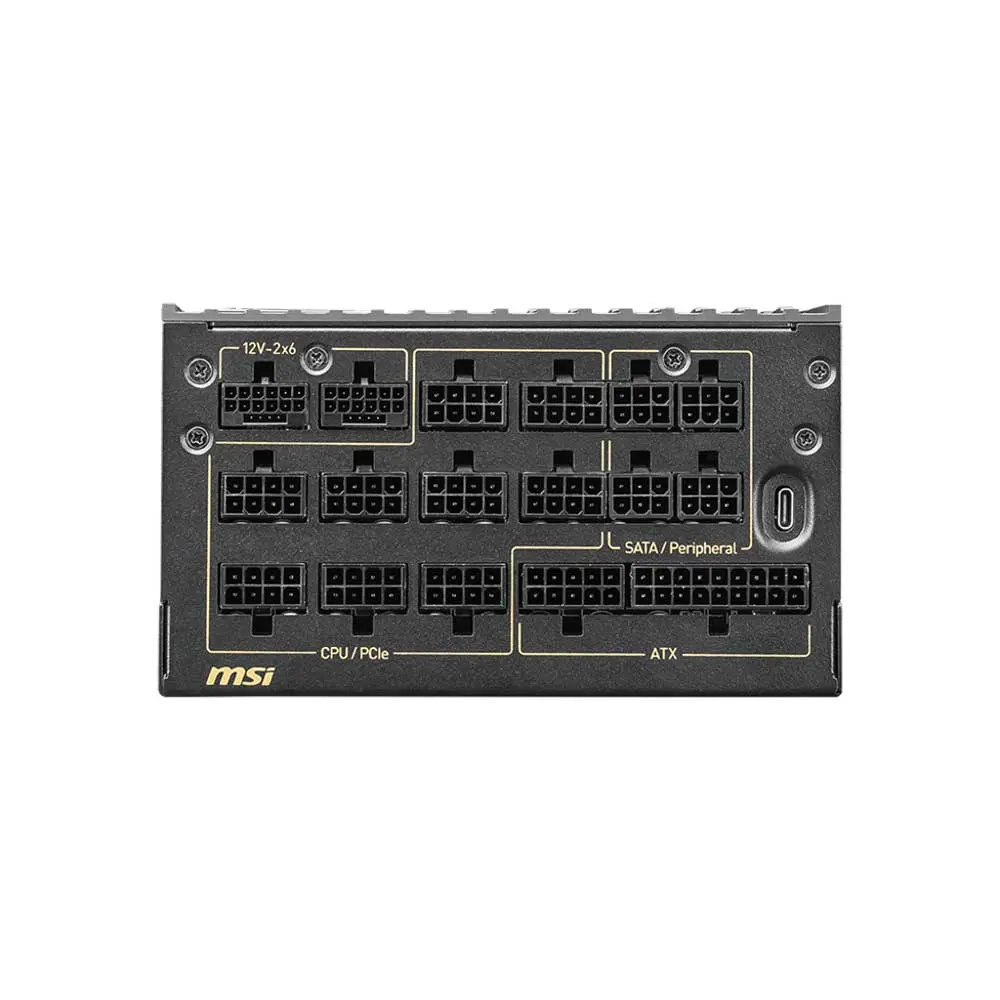

| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.1 (16 pin) | 2 (600W) |
| PCI-E (6+2 pin) | 9 |
| SATA (15 pin) | 8 |
| PERIPHERAL (4 pin) | 8 |
| Warranty | 10 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
