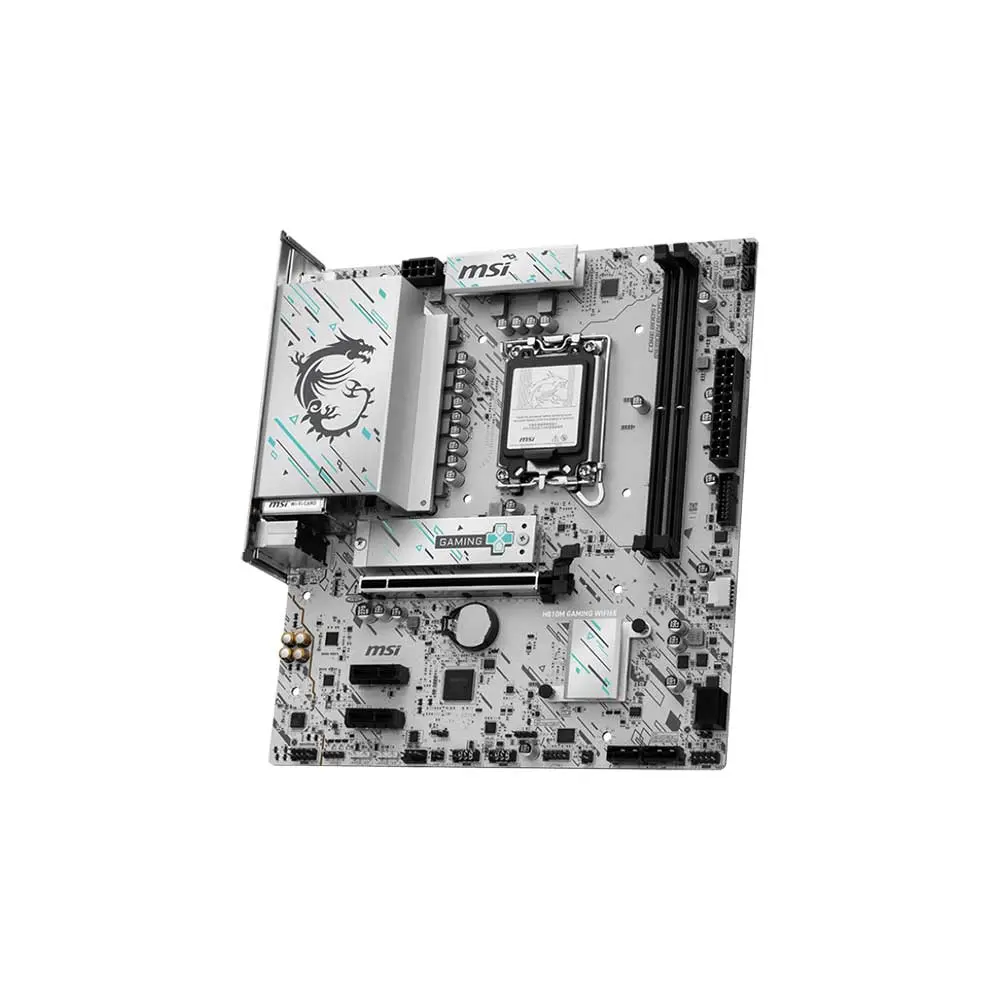

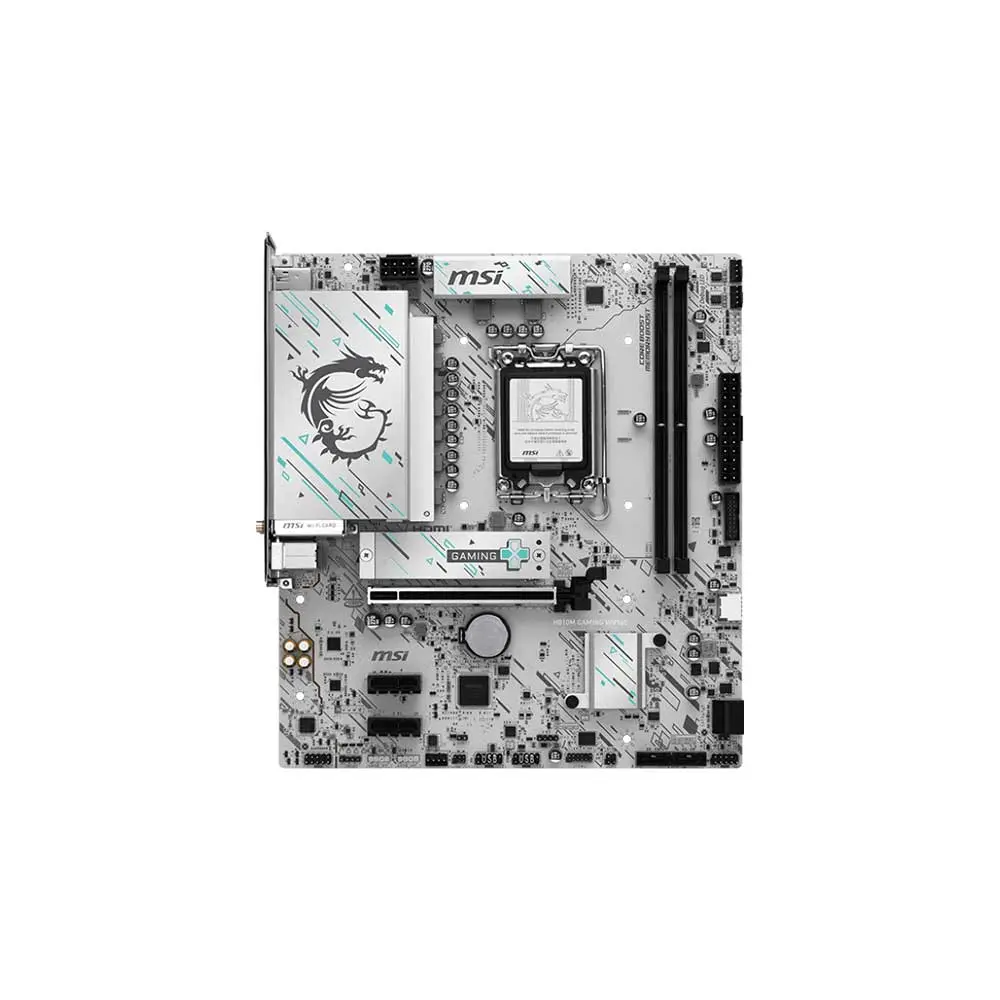

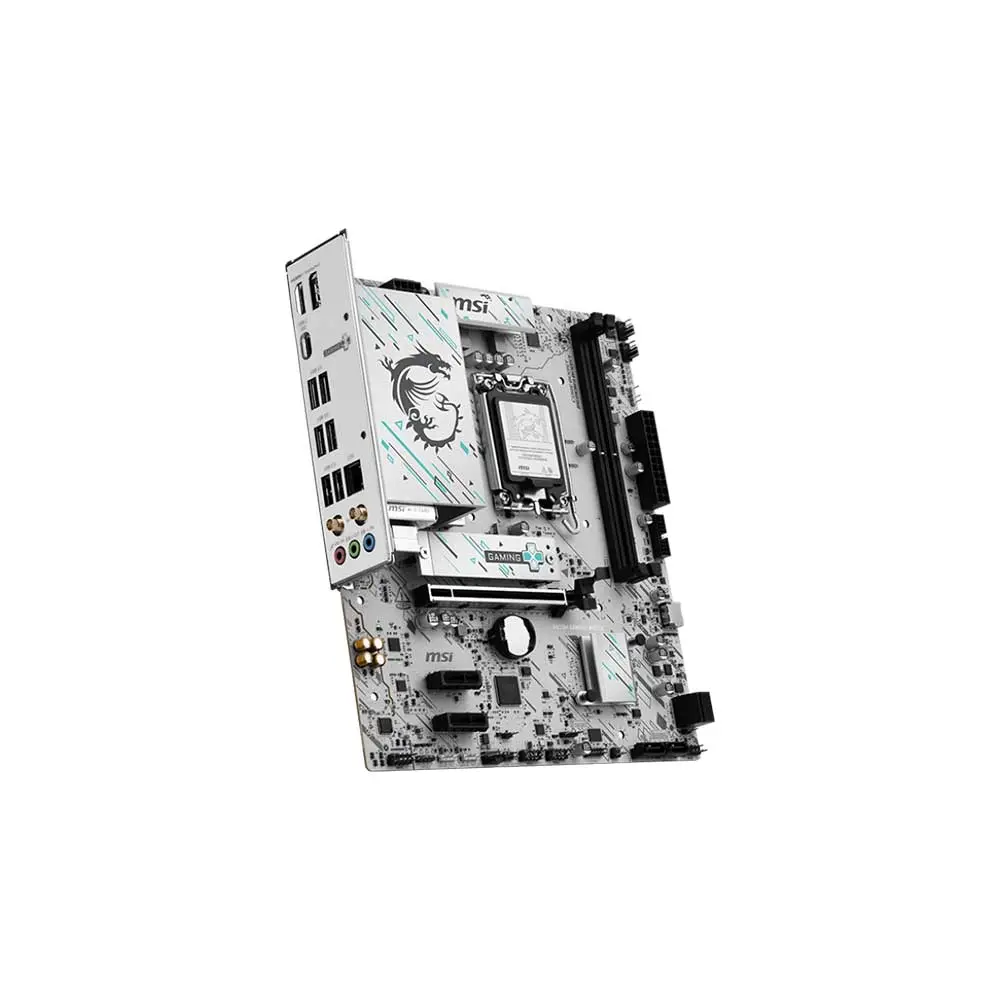

MSI H810M Gaming WiFi6E LGA1851 Micro ATX Motherboard
The H810M GAMING WIFI6E motherboard features a sleek, cyber-inspired pattern with teal and black geometric accents on a silver base. Featuring USB 20G Type-C port, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 solution and M.2 Shield Frozr, ready for Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+ MT/s (OC)
- Ultra Performance: 6 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 20G Type-C
- High-Speed Connectivity: Realtek® 2.5G LAN, Wi-Fi 6E Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
| Chipset | INTEL H810 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/sSupports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® 8125 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Wireless LAN & Bluetooth | Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
| Back Panel Ports |
|
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | mATX 220mmx243.84mm |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
