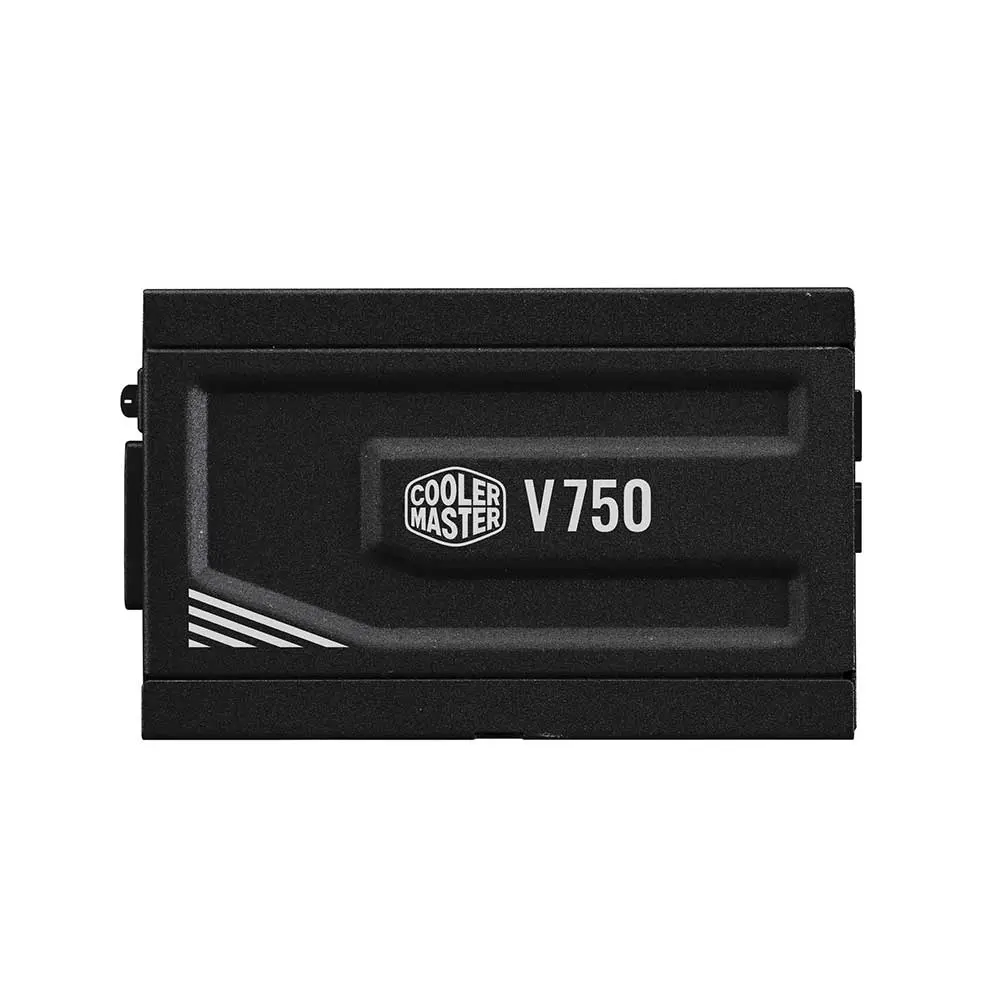

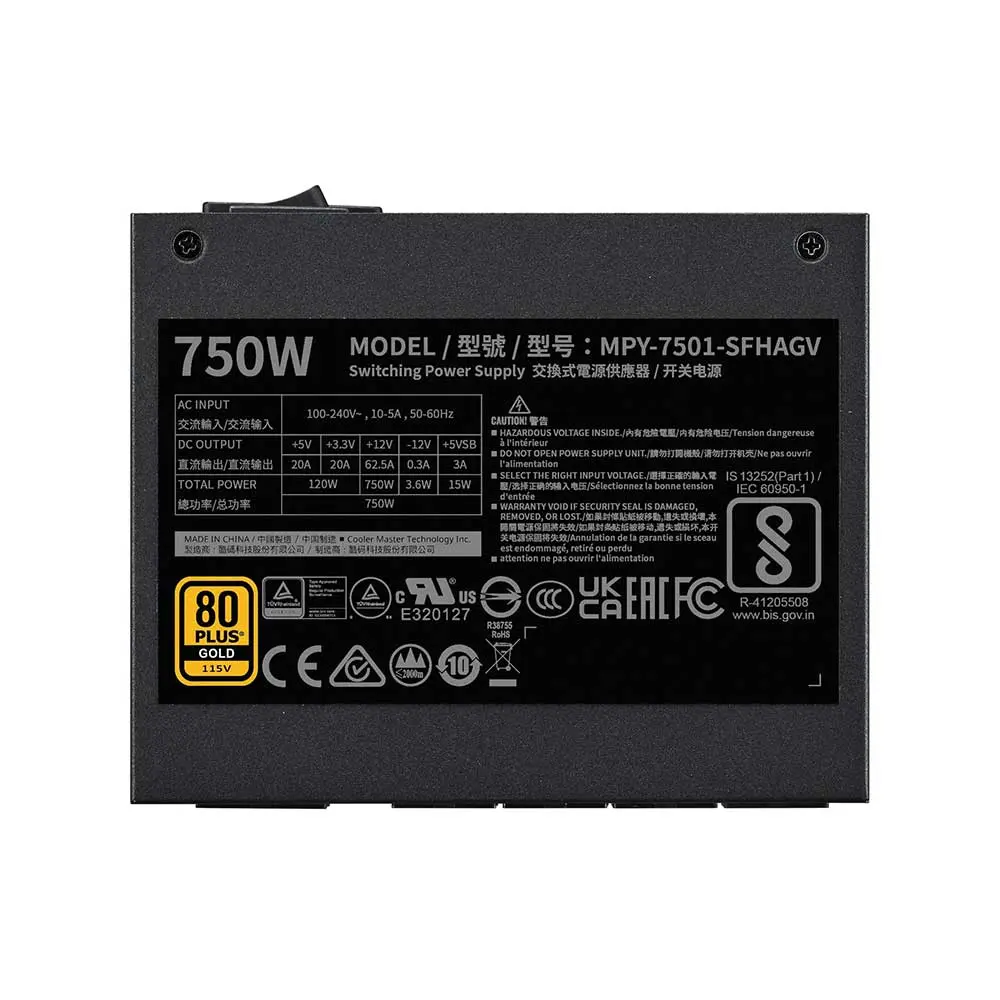

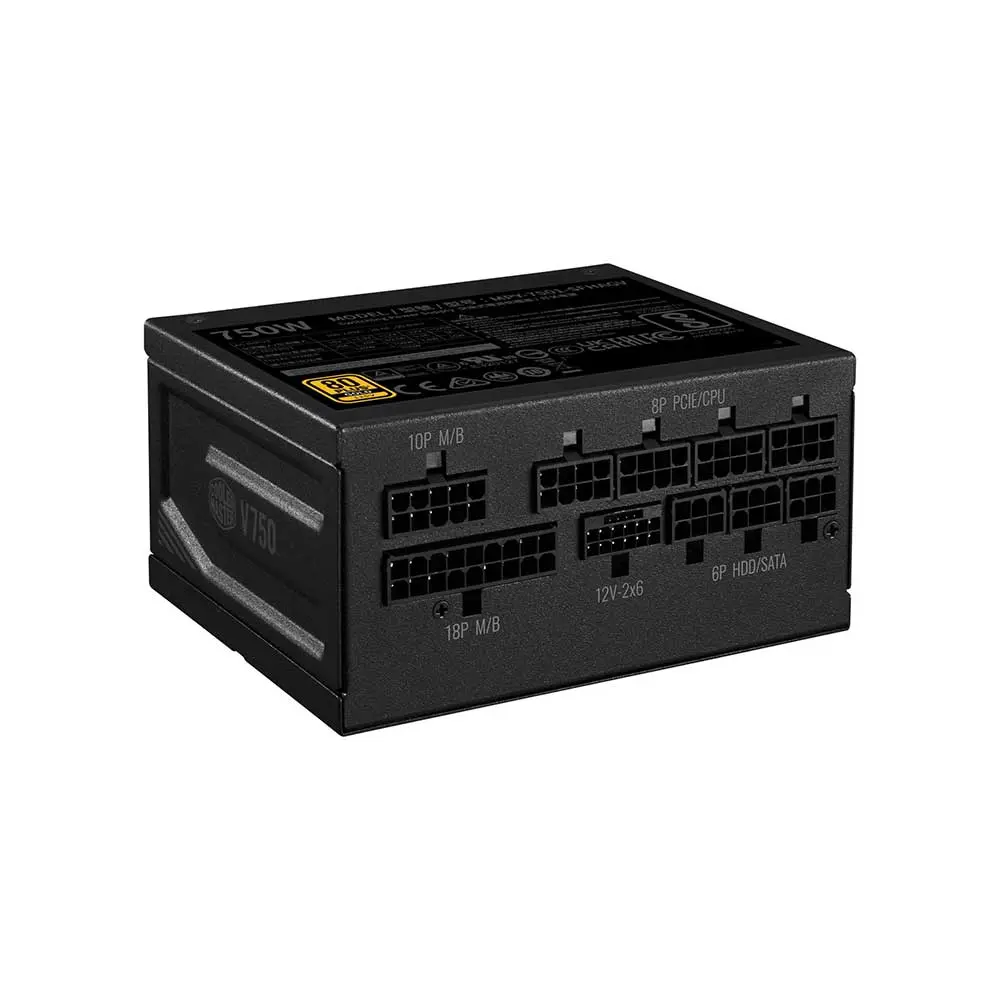

Cooler Master V SFX Gold 750 ATX 3.1 Power Supply
As the leading SFX power supply design, the Cooler Master V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
- Flexible compatibility
- ATX 3.1 support & a 90-degree 12V-2×6 cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
- 10-year Warranty
| Model | MPY-7501-SFHAGV-3E |
| ATX Version | ATX 3.1 & SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimension (LxWxH) | 100 x 125 x 63.5 mm |
| Fan Size | 92mm |
| Fan Bearing | FDB |
| Fan Speed | 1900 RPM |
| Efficiency | 90% @ Typical Load |
| 80 Plus Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2×6 Connectors | 1 |
| Form Factor | SFX |
| Watts | 750W |
| Modular | Fully Modular |
| Series | V SFX Series |
| 80 Plus Efficiency | Gold |
| Warranty | 10 Years |
| Note** | *** Images are for Representation purposes only
**Prices, Specifications & Features are subject to change without notice |
