Description

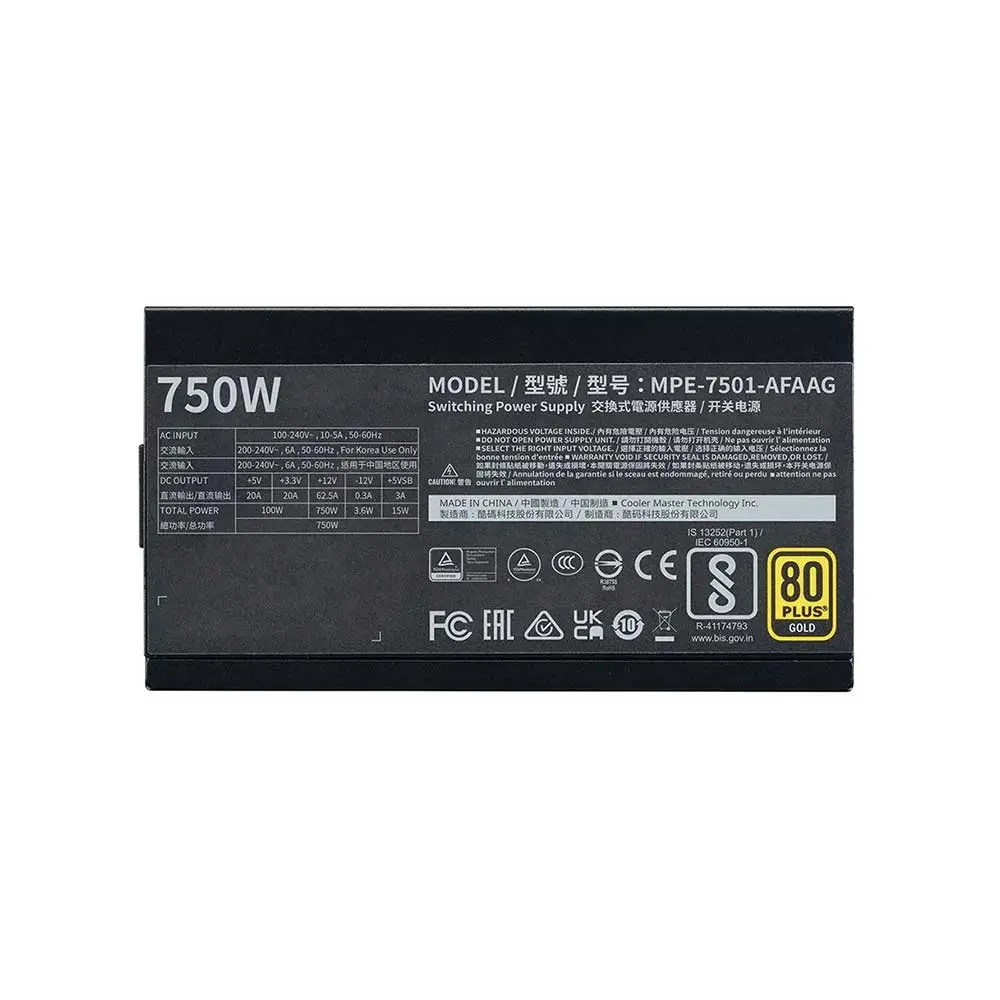

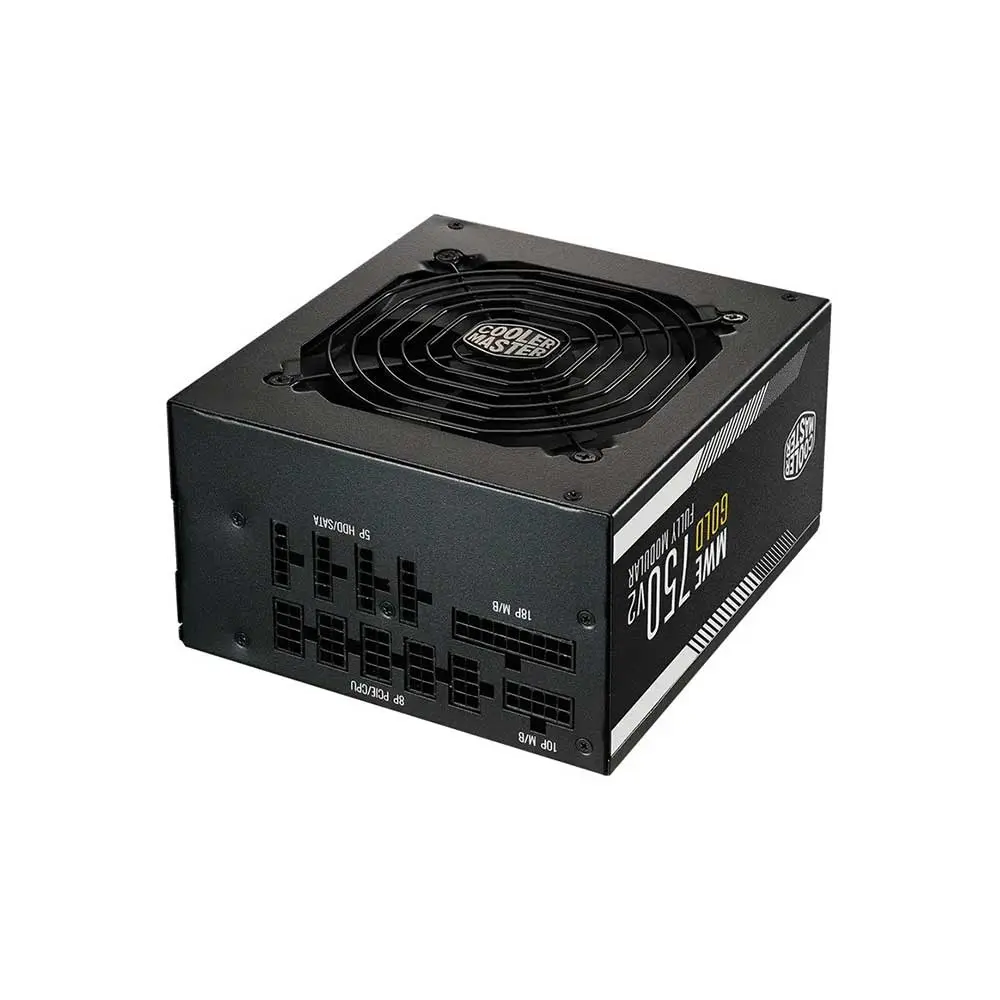

Cooler Master MWE Gold 750 Watts V2 ATX 3.1 Power Supply
- ATX 3.1 support
- A 90-degree 12V-2×6 adapter cable
- High temperature resilience
- High-quality Japanese capacitors

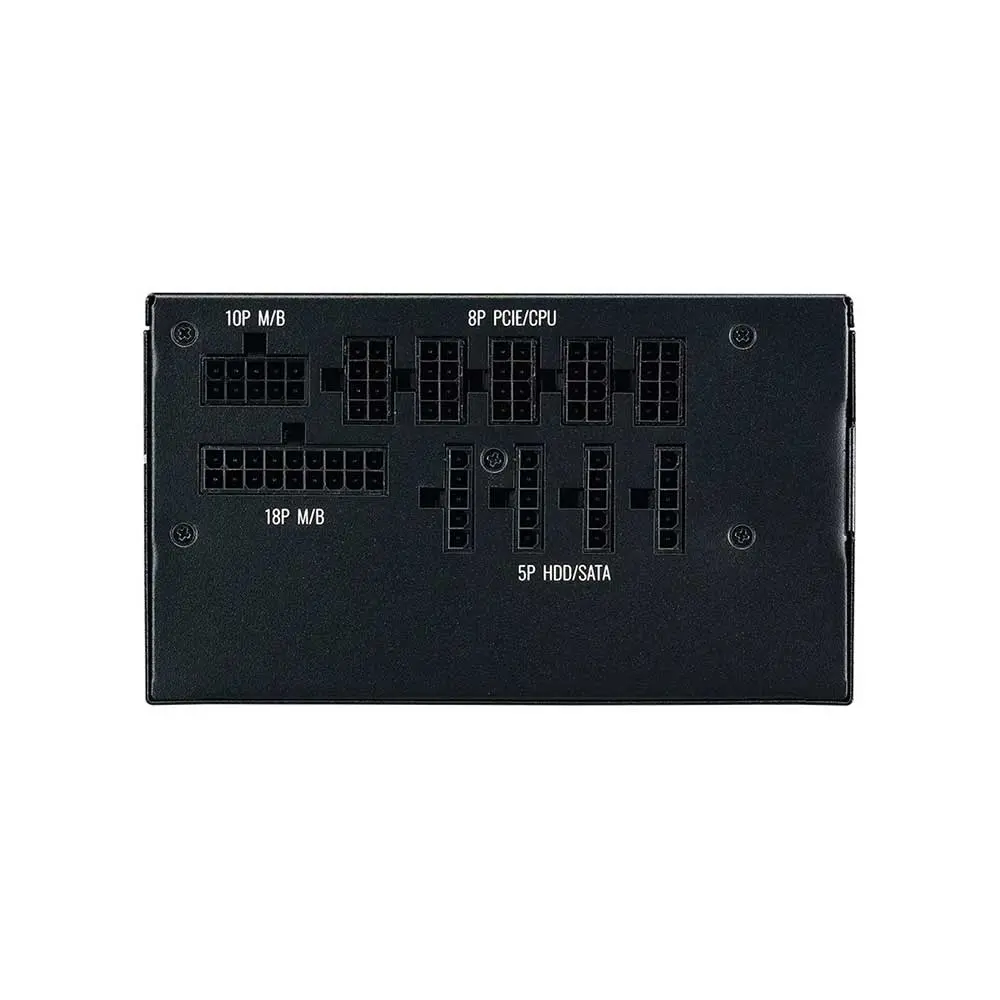

- Fully modular cabling
- 5-year warranty
| Model | MPE-7501-AFAAG-3EIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (LxWxH) | 160 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | ≥90% @ Typical Load |
| 80 Plus Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory | TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2×6 Connectors | 1 (1 to 3) |
| Category | Above 750W |
| Series | MWE Gold Series |
| Modular | Fully Modular |
| Form Factor | ATX |
| 80 Plus Efficiency | Gold |
| Watts | 750W |
| Warranty | 5 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
