Description

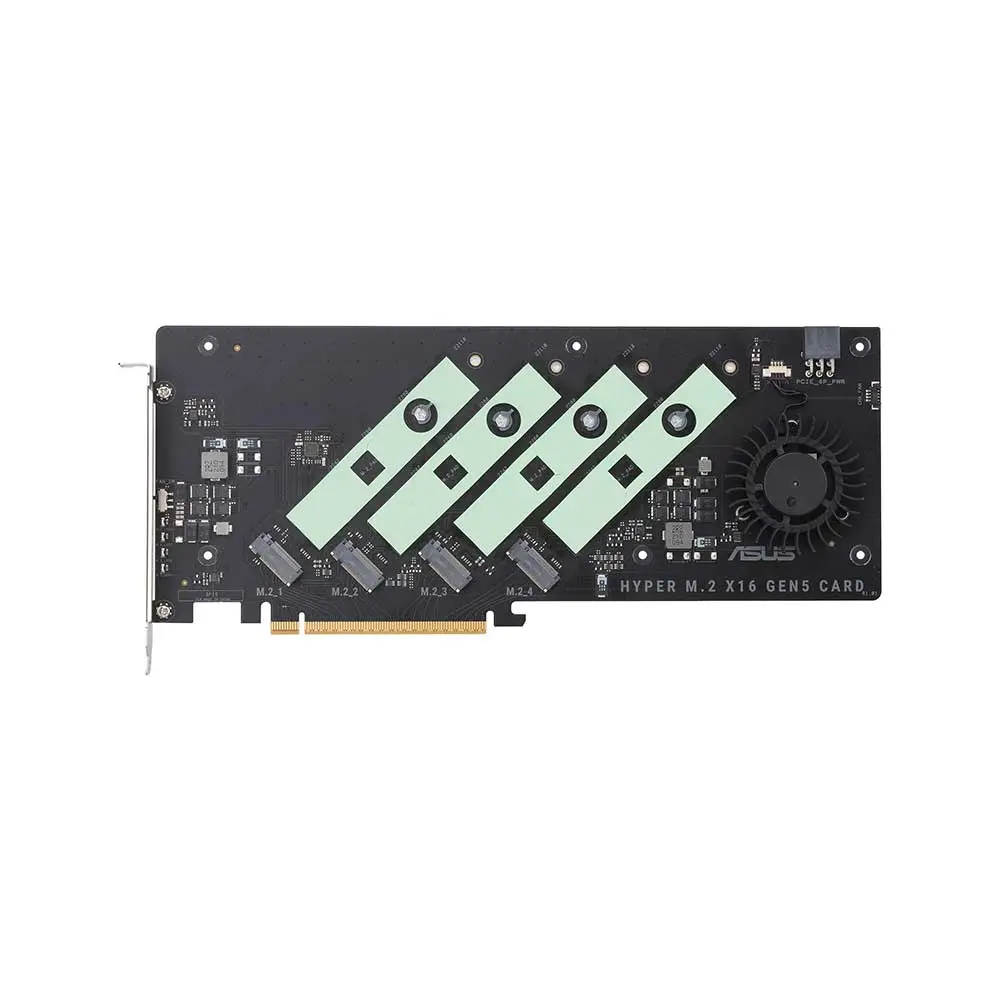

ASUS Hyper M.2 x16 Gen5 Card
ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID functions across diverse CPU platforms
- 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives

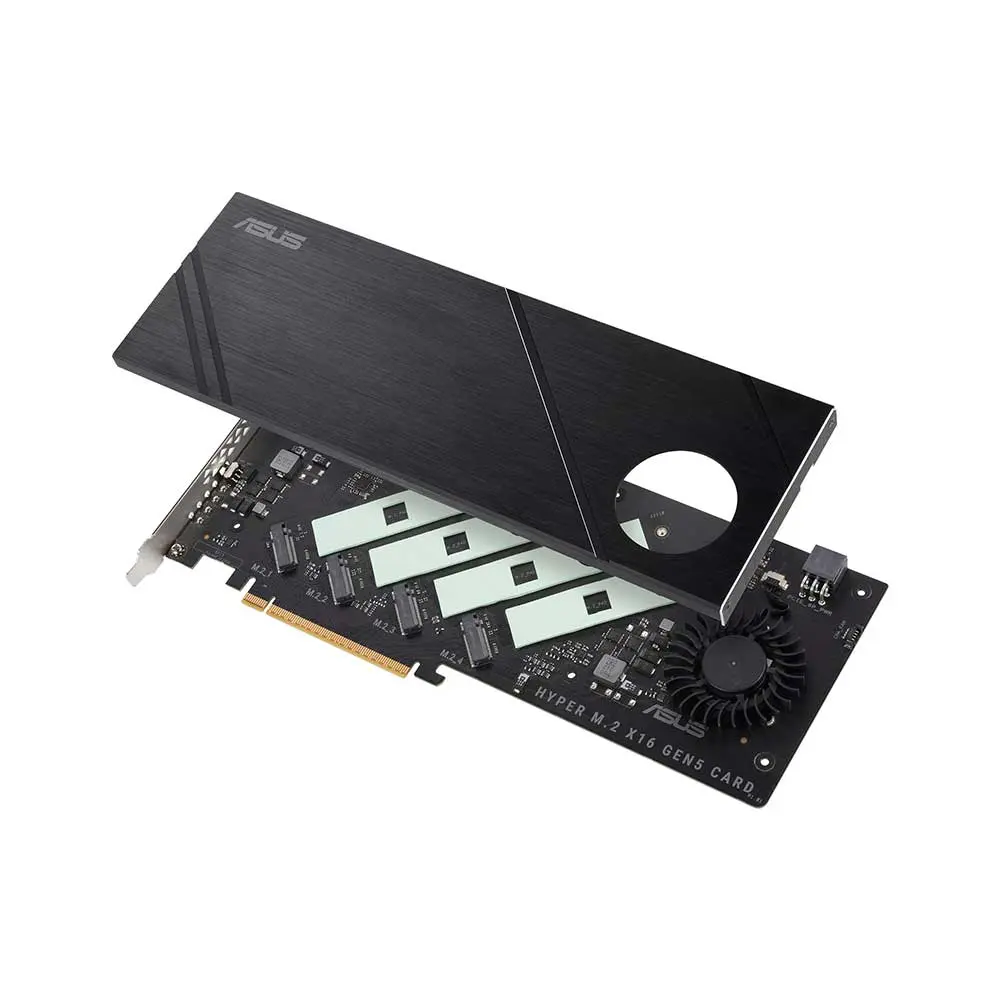

- Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard’s chassis fan header to allow the motherboard to control and regulate fan speed
- Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
| Model | Hyper M.2 x16 Gen5 Card |

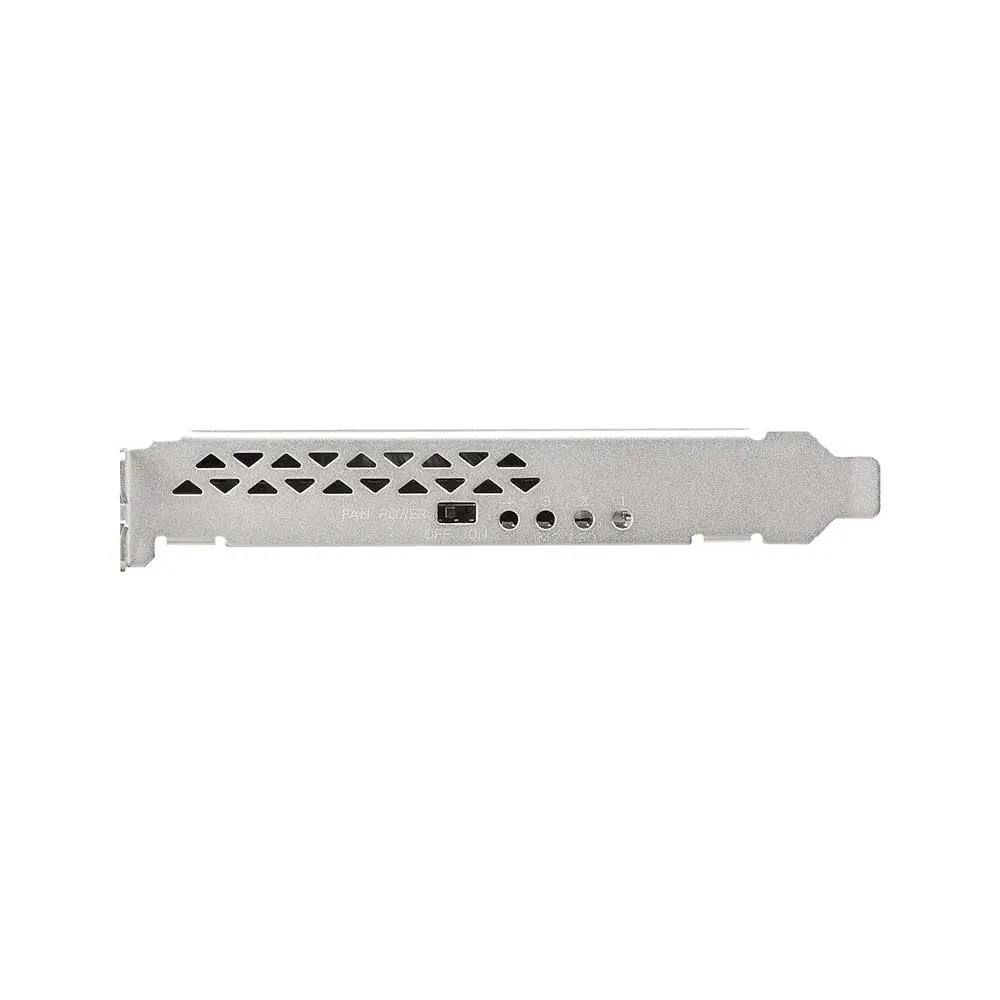

| Specs | PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps. 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)* * Supports PCIe M.2 storage devices only. 1 x M.2 FAN Power Switch 4 x M.2 access LEDs Active fan with heatsink, support fan control from MB chassis fan header PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps. 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)* * Supports PCIe M.2 storage devices only. 1 x M.2 FAN Power Switch 4 x M.2 access LEDs Active fan with heatsink, support fan control from MB chassis fan headerMaximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for full compatible lists and further information: https://www.asus.com/support/FAQ/1037507 |
| Dimensions | 29 (L)*12.2(W) *1.5(H)cm |
| Warranty | 1 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
